We currently carry 4 Serpentine Belt products to choose from for your 2010 Ford Focus, and our inventory prices range from as little as $30.49 up to $64.99. On top of low prices, Advance Auto Parts offers 3 different trusted brands of Serpentine Belt products for the 2010 Ford Focus. An expert that has over 10 points. Mayor: An expert whose answer got voted for 2 times. Contributor. 4 Answers. Re: 2002 ford focus zts serpentine belt diagram - 2002 Ford SVT Focus Cars & Trucks. U can google it that for sure. Posted on Feb 20, 2012. Helpful 0.

The Ford Focus generally has a dedicated drive belt, sometimes called the serpentine belt, that drives the alternator, power steering, and air conditioning compressor. Ford recommends checking this belt every 6,000 miles or 6 months for possible replacement.

2010 ford focus serpentine belt diagram

Serpentine Belt Diagram for 2010 FORD Focus This FORD Focus belt diagram is for model year 2010 with 4 Cylinder 2.0 Liter engine and Serpentine. Posted in 2010. Posted by admin on January 27, 2015. 2009 FORD Focus Serpentine Belt Diagram for 4 Cylinder 2.0 Liter Engine. ... 2010 FORD F Series Pickup Serpentine Belt Diagram for V8 6.2 Liter Engine. Next Post 2008 FORD Edge Serpentine Belt Diagram for V6 3.5 Liter Engine. Comments are closed. ... Amen to that. Our '01 ZX3 had a diagram-sticker for the serpentine belt affixed to the underside of the hood. Our new '05 has no diagram-sticker for the belt, nor does the hood have a pad that absorbs heat/deadens sound, which the '01 also had as standard equipment. From the looks of things on this new Focus, I'd say the bean counters at Ford ...

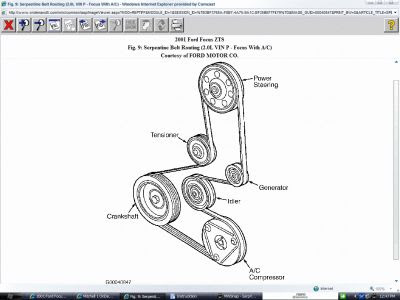

2010 ford focus serpentine belt diagram. Serpentine Belt Diagrams Serpentine Belt Busted On My 2010 Ford Focus. It Had Melted Onto The Pulley, So I Replaced Both Tensioner And Idler Pulleys, Along With... Ford Focus. Select the year of your Ford Focus to view belt diagrams. 2000. 2001. 2002. 2003. 2000-2005 Ford Focus 2.0L. *more diagrams below. Removal: With the vehicle in Park and turned off, remove the splash shield to gain access to the tensioner. Rotate the tensioner pulley clockwise to release tension on the belt. Remove the belt from the easiest pulley to access and slowly release the tensioner pulley. Installation: SOURCE: belt routing diagram 98 zx2 2.0. 1) Start with the alternator. 2) Forward to the smooth idler. 3) Forward to power steering. 4) Down to A/C compressor. 5) Back to crank pulley. 6) Forward around tensioner. 7) Back glancing off of water pump. 8) Back glancing off of ribbed idler.

2010 Ford Focus. Asked by lee.michelle819 in Aiken, SC on June 13, 2018. My AC compressor on my 2010 Ford Focus SE has completely seized. Repair estimate to replace compressor, belt, receiver-drier (due to debris in system) is $1100-1500, which isn't really in the budget right now. The compressor can be bypassed with a shorter belt though, correct? SOURCE: belt diagram. for the most part there is a diagram under the hood showing you how the belt goes back on you can try www.autozone.com to see if they have your car listed but this is what i do i draw a diagram of the old belt before i take it off and that way i know how the new one goes on. Posted on Apr 20, 2009. Hi can someone please tell me how to replace my serpentine belt it's a 2009 Ford Focus 1.6 petrol I need to remove the small belt in front of the serpentine belt how do I do it. Thanks in advance Mark. Answered! View the answer I have this problem too Subscribed to new answers . Is this a good question? Yes No ... About 2010 Ford Focus Belt The 2010 Focus serpentine belt is responsible for transmitting rotational engine power to auxiliary systems like the AC compressor, alternator, and water pump. If the belt breaks, these crucial systems will not work and you will not be able to drive, so it's important to keep an eye out for signs of wear like damaged ...

1A Auto shows you how to repair, install, fix, change or replace a broken, noisy, squeaky, worn or groaning serpentine belt tensioner. This video is applicab... We are proud to have the ability to make vehicle specific belt routing diagrams available for free. Follow the guide for serpentine belt routing diagrams. This will open up to the index. Scroll down to find your vehicle manufacturer. Then scroll to the page the index refers to. Select the specific year and make of your vehicle. Serpentine belt busted on my 2010 Ford Focus. It had melted onto the pulley, so I replaced both tensioner and idler pulleys, along with serpentine belt. Now when I start the car, it dies within 30 seconds, and starts smoking. Check engine light is on, which it wasn't before the belt broke. Ford Focus Belt Diagram2.0 with AC Visit: http://top5autorepairs.com

Ford Focus Forum. Nedd help, Needd Serpentine Belt routing Diagram. ... So, I dont know how to route the new Serpentine Belt... I called the dealership, ... Diagram 2001 Focus timing belt installation - FixYa . Never, never, never give up. Save Share. Reply. 1 - 2 of 2 Posts.

50 Unique 2000 Ford Focus Serpentine Belt Diagram For Alternative. 2010 Ford Escape 2 5l Serpentine Belt Diagram Lovely 2006 Ford Focus. 2005 Focus Se Serpentine Belt Ford Focus Forum Ford Focus St. Serpentine Belt Diagram 2002 Ford Escape Fusion Fresh Accord 1 8. Posted by CarNews at 3:38 AM.

2006 Ford Mustang GT 4.6L serpentine belt diagrams Above is the diagram for the 4.6 Liter engine. When you remove this belt, ensure to use a suitable belt tensioner release tool, rotate the accessory drive belt tensioner clockwise and remove the

Need serpentine belt diagrams on location? Take us with you! ... This diagram fits the 2000-2005 Ford Focus with the 2.0 liter engine. The diagram shows routing for engines with and without AC. ... August 19, 2010 . Chevy Truck 1996-98 4.3L, 5.0L and 5.7L. July 12, 2010 ...

I need a diagram for a 2004 ford focus 2000cc zetec serpentine belt Click on the following direct Free Link . It has the Serpentine Belt Diagrams, including for your 2004 Ford Focus 2.0L with the unspecified Engine Options (AC/No AC, etc.).

Serpentine belt replacement: 15 to 30 minutes. (In this video I helped a friend replace a serpentine belt on a 2006 Ford Focus. This should be the same for a...

Describes replacing the serpentine belt on a 2010 Ford Focus. Shows a trick of tying the tensioner to the drive axel.

In this video, I will show you how to change a serpentine/drive belt on a Ford Focus.Dodge Caravan belt video. https://youtu.be/59YOkX2ZkOs

2016 Ford Focus Serpentine Belt Diagram for 2.0L 4-cyl w/o Turbo. Serpentine W/Turbo K040512 . 2016 Ford Focus Serpentine Belt Diagram for 2.0L 4-cyl with Turbo. Serpentine With Turbo K040535 . 2016 Ford Fusion Serpentine Belt Diagram for 1.5L 4-cyl. Serpentine K060620 . 2016 Ford Fusion Serpentine Belt Diagram for 2.0L 4-cyl. Serpentine; W ...

2009-2010 Ford Mustang 4.6L Tools With Ford Mustang 2009-2010 4.6L Engine model, the serpentine belt tensioner will set its tension automatically on the belt, and there won't be a separate adjustment required.

Thanks for using FixYa. You can look at this picture for serpentine belt for your 2002 Ford Focus Z3--Ford Focus Z3 Serpentine belt Removal--· Jack up the front of the vehicle and support it on jack stands. Use a wrench to remove two bolts and take off the drive belt lower cover.

Amen to that. Our '01 ZX3 had a diagram-sticker for the serpentine belt affixed to the underside of the hood. Our new '05 has no diagram-sticker for the belt, nor does the hood have a pad that absorbs heat/deadens sound, which the '01 also had as standard equipment. From the looks of things on this new Focus, I'd say the bean counters at Ford ...

2009 FORD Focus Serpentine Belt Diagram for 4 Cylinder 2.0 Liter Engine. ... 2010 FORD F Series Pickup Serpentine Belt Diagram for V8 6.2 Liter Engine. Next Post 2008 FORD Edge Serpentine Belt Diagram for V6 3.5 Liter Engine. Comments are closed. ...

Serpentine Belt Diagram for 2010 FORD Focus This FORD Focus belt diagram is for model year 2010 with 4 Cylinder 2.0 Liter engine and Serpentine. Posted in 2010. Posted by admin on January 27, 2015.
