The reason you'd like to do this is because, with the dual primary, you can use this transformer in places like the US where it's 115 volts or somewhere where it's 230 volts. So, depending on where you expect to use this, you can wire the primary side of the transformer to the voltage that you want. Now on the other side, it's the same concept. Note: Before testing any components in a microwave, be sure the unit is unplugged and the high voltage capacitor has been discharged. The transformer consists of three windings. Your primary winding with the thicker wires, your secondary high voltage winding with the thinner wires, and your secondary low voltage winding that is between the ... Answer (1 of 4): As already said by John, If you don't know how they work, don't play with the MOT. These put out 2,000 to 2,200 Volts at about 0.5 to 0.7 Amps which is very dangerous if you have no understanding of High Voltage electricity. Normally the primary coil ( thicker wire, often Coppe...

Microwave transformer wiring diagram. ACME ELECTRIC † MILWAUKEE, WI † 800.334.5214 † acmepowerdist.com 157 GENERAL ELECTRICAL CONNECTION DIAGRAMSACME® TRANSFORMER™ WIRING DIAGRAMS PRIMARY: 240 Volts Delta SECONDARY: 208Y/120 Volts TAPS: 2, 5% BNFC X1 H1 X2 X3 H2 H3 X0 3 2 1 3 2 1 3 2 1 Connect Connect Primary Primary Inter- Secondary Read Microwave Transformer Wiring Diagram PDF on our digital library. You can read Microwave Transformer Wiring Diagram PDF direct on your mobile phones or PC. As per our directory, this eBook is listed as MTWDPDF-120, actually introduced on 5 Jan, 2021 and then take about 1,895 KB data size. MOT. Transformer from microwave oven. Primary winding (lower, thick wire) 230V, secondary winding (upper, thin wire) 2kV. The few turns of very thick wire wound on top of the secondary supply about 3V at a few A to the magnetron filament. 2) Wiring up the transformer: The transformer has two male connector tabs that the 120v household current connects to. polarity does not matter when you hook up the hot (black wire) and the neutral (white wire). The electricity travels through the lower coil and out of the upper coil. This increases the power from 120v to approx. 2000v.

Thank God there are plenty of 800 watt transformers available for free in old microwave ovens. In a day I found a microwave unit with an as-good-as-new transformer. These transformers have a 230V (Europe) thick wire primary and 2000V thin wire secondary to produce the high voltage needed for the microwave magnetron! Microwave transformer wiring diagram. If you cannot locate your wiring diagram you can call the appliances answer center with your complete model number. Conduct all operation tests with 1 liter of water in the oven. Microwave energy may leak from the space between the door and oven. The Wiring Diagram and Strip Circuits used in this Job Aid are typical and should be used for training purposes only. Always use the Wiring Diagram supplied with the product when servicing the oven. GOALS AND OBJECTIVES The goal of this Job Aid is to provide information that will enable the In-Home Service Professional Free online library on electronics Order a schematic diagram and get it today. Search on the page: Ctrl+F (enter the name of the firm or digital value of the model) LG microwave ovens schematic diagrams and service manuals. How to download LG microwave ovens schematic diagrams and service manuals? LG MA-892TD. LG MB-3907. LG MB-390A. LG MB-390A.

Microwave Oven Transformer High Voltage Rig: For my first Instructable, I decided to make a high voltage power supply out of 2 microwaves. The videos should give you good idea of the final product (I'm using only one of the 2 transformers): Battery Charger Transformer Wiring Diagram Wiring Diagram Third. Build A 70 Amp Arc Welder Miscdotgeek. Schematic Diagram Of The Microwave Source Circuit Download. 06120la 1 Galanz Microwave Hv Transformer Gal 1000u 2. The microwave oven transformer has three windings, one of which is a primary winding, and AC 220V mains voltage is applied to this winding; a plurality of silicon steel sheets of a certain thickness are inserted between the primary and secondary windings, so that a high magnetic resistance is formed in the transformer. Microwave Transformer for Lichtenburg Figures - YouTube. Find this Pin and more on Toms wood ides by Karen Neeley. Burning Wood With Electricity. Wood Burning Tool. Wood Burning Crafts. Wood Projects For Beginners. Diy Wood Projects. Diy Electronics. Electronics Projects.

Modified Circuit Using High Voltage Capacitors And Diodes For Full Download Scientific Diagram

Microwave Transformers. The microwave oven transformer is possibly one of the simplest methods of making some big high voltage arcs, mainly because they are robust, cheap, and easy to hook up. To the bottom left I have a picture of an MOT. The mains input is two blade connectors on the primary coil (thick wire).

Microwave Oven Working Principle Studiousguy

microwave source, and make repairs as necessary; (1) interlock operation, (2) proper door closing, (3) seal and sealing surfaces (arcing, wear, and other damage), (4) damage to or loosening of hinges and latches, (5) evidence of dropping or abuse. C) Before turning on microwave power for any service test or inspection within the microwave ...

Malger S Mixtv Microwave Oven Wiring Diagram Facebook

Microwave oven transformer Mains wiring One thing about microwave transformers is that without a ballast, MOT's draw high amounts of current, in the 30 amperes range if using 120 volt mains.

Microwave Transformer

In this project, you'll learn step by step how to modify a microwave oven transformer into a high-current device that can pump out 800 amps of electrical current, which is enough amperage to melt metal. If you liked the Metal Melter you saw in my previous project, here's how you can make your own!

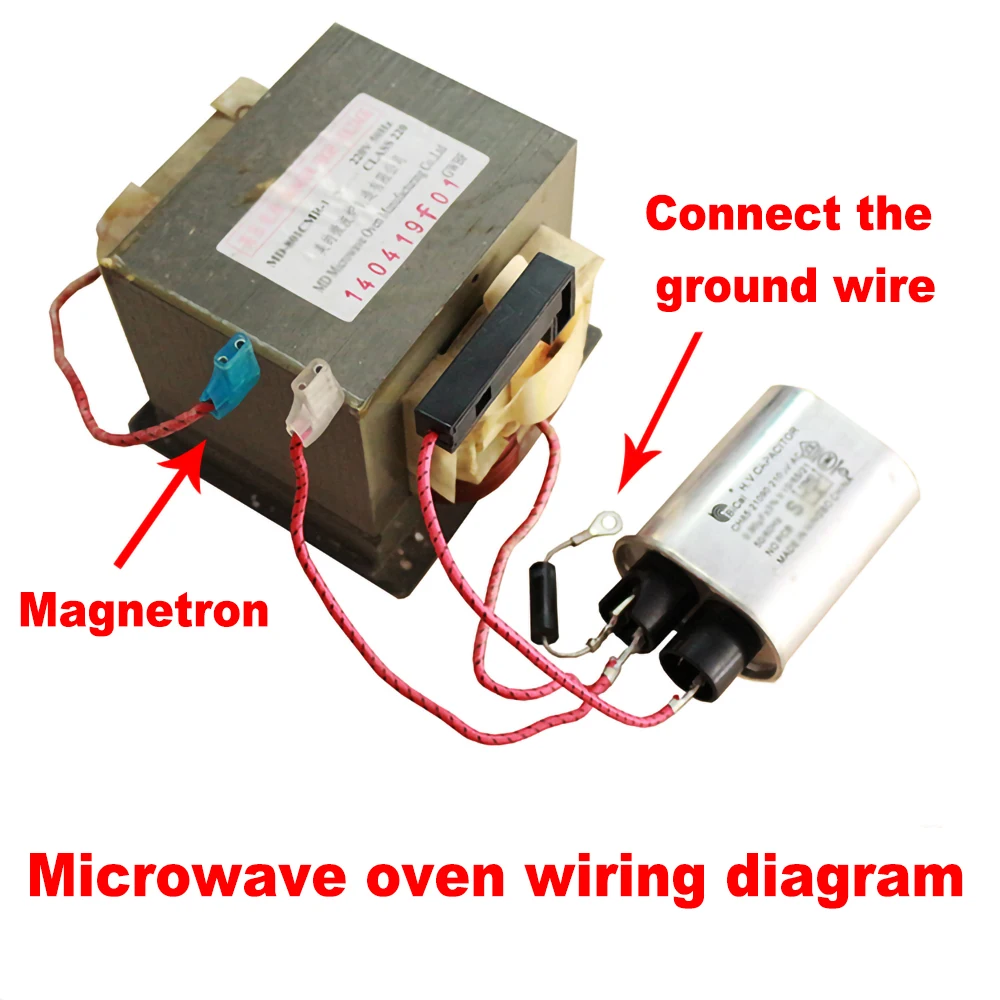

Microwave High Voltage Transformer Md 903emr 1 Buy Microwave Transformer Voltage In South Africa Microwave High Voltage Transformer In South Africa Microwave Transformer Wiring Diagram In South Africa Product On Alibaba Com

Diagram] basic lichtenberg transformer wiring diagram full version hd quality wiring diagram. The microwave source board @ the microwave museum. Microwave oven.

Home Brew Isolation Transformer

In this video, you'll see how to extract a high voltage transformer from a microwave oven and use it to create a 2000 volt power supply. (AKIO TV) MMXVII

Schematic Transformer Help

Wiring Diagram Of Samsung Microwave Oven. One of my ERG members by the name of Amitava Sen drawn the wiring diagram of Samsung Microwave Oven. If you repair Microwave Oven I believe it will be a help to you. This wiring diagram was prepared for you by Amitava Sen from Kolkata India. Please give a support by clicking on the social buttons below.

Microwave Transformer Capacitor

Mar 23, 2019 - How to Make a Lichtenberg Burner With a Microwave Transformer: Lichtenberg figures are formed when high voltage electricity passes along the surface of an insulated material. You can use a microwave transformer to build a machine that will produce Lichtenberg figures. Materials:Microwavedrillpliersswitchwire cu…

Microwave Oven Transformer Mot How To Youtube

On the left is a 12,000 volt neon sign transformer and on the right a 2,000 volt microwave oven transformer. Both of these transformers produce voltages and currents sufficient to kill someone. Safety procedures must be carefully followed or a fatal accident can happen. As a minimum, I recommend the following: 1.

High Voltage Experiments

The wiring of a high-voltage unit of the microwave oven includes a first lead from a high-voltage transformer (51) to a first terminal (515) engaging a terminal (523) of a magnetron (52), a second lead from the first terminal (515) to a second terminal (516) engaging a terminal (536) of a high-voltage capacitor (53) and a third lead connecting the second connector (516) to a high-voltage diode ...

High Voltage Microwave Transformers Mot Experiment Youtube

Step 4: Wind the New Transformer Secondaries. We wound 20 turns of 10-guage wire on each transformer. That's just about how much wire would fit into the available space. It took a little over 20 feet of wire each. tip: draw tally marks on your table to keep track of the number of windings.

Pin On Knowledge

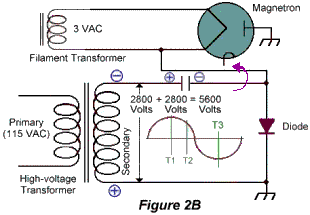

Answer (1 of 4): As already said by John, If you don't know how they work, don't play with the MOT. These put out 2,000 to 2,200 Volts at about 0.5 to 0.7 Amps which is very dangerous if you have no understanding of High Voltage electricity. Normally the primary coil ( thicker wire, often Coppe...

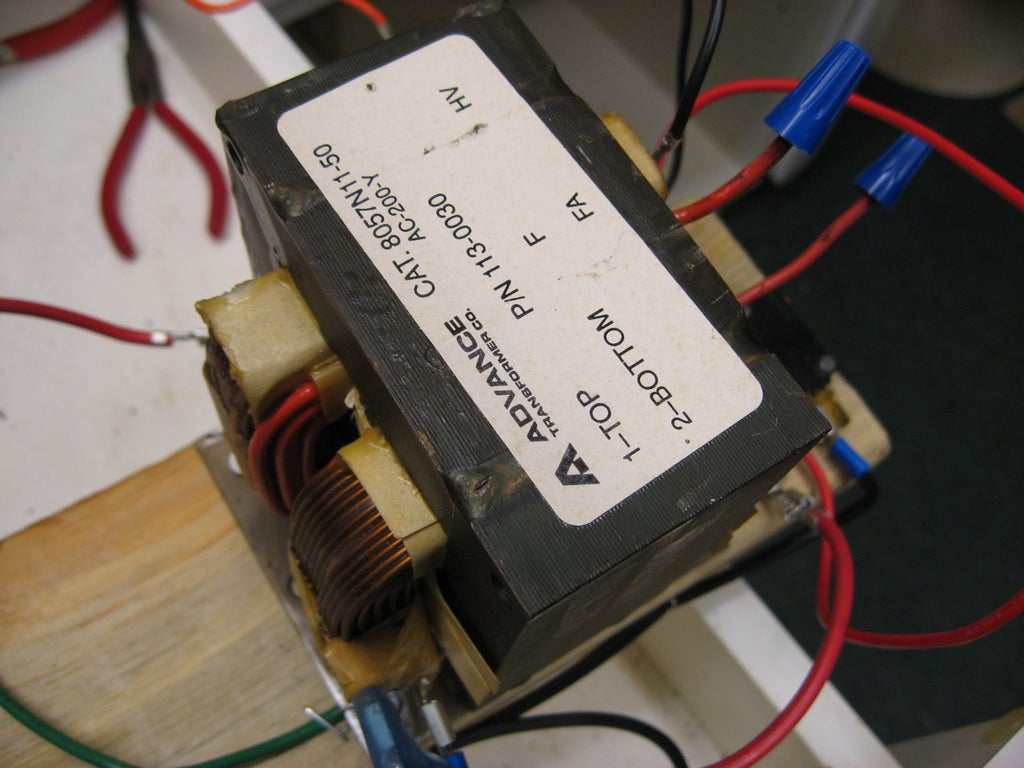

Microwave Oven Transformer High Voltage Rig 7 Steps Instructables

Note: Before testing any components in a microwave, be sure the unit is unplugged and the high voltage capacitor has been discharged. The transformer consists of three windings. Your primary winding with the thicker wires, your secondary high voltage winding with the thinner wires, and your secondary low voltage winding that is between the ...

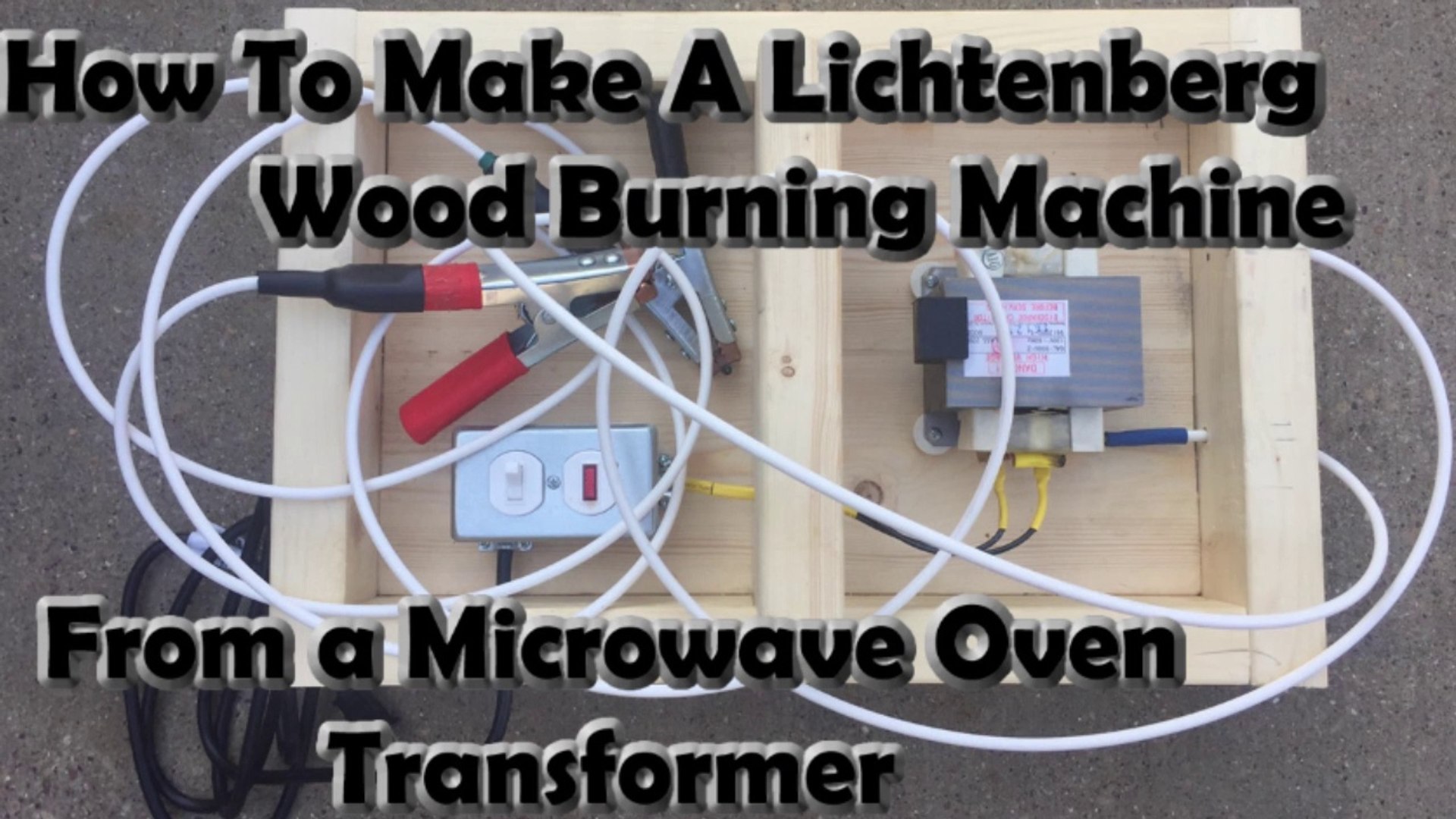

How To Make A Lichtenberg Wood Burning Machine From A Microwave Oven Transformer Video Dailymotion
