May 27, 2002 - General Q & A - Alternator wiring hookup - Need some help here. Took off the wiring on my Mando alternator, yes did tag it, but wiring just does not look correct. Can somebody tell me where and how the 4 wires go. I looked at a MerCruiser wiring diagram and understand it, but my alternator ... A wiring diagram is a visual representation of components and wires related to an electrical connection. This pictorial diagram shows us the physical

Mando Marine Alternator Wiring Diagram Database Wiring . Save Image. 2006 Jeep Liberty Ignition Wiring Diagram U Wiring. Save Image. 1994 Jeep Grand Cherokee Radio Wiring Diagram Wiring Forums. Save Image. 84 Jeep Cj7 Wiring Diagram Jeep Cj7 Starter Solenoid . Save Image. 1971 Jeep Cj5 V6 Color Wiring Diagram.

Mando alternator wiring diagram

Mando Marine Alternator Wiring Diagram from boatwiringharness.laboratoire-herrlisheim.fr. Print the wiring diagram off plus use highlighters to trace the signal. When you make use of your finger or perhaps the actual circuit with your eyes, it is easy to mistrace the circuit. 1 trick that We 2 to printing a similar wiring plan off twice. Wiring Diagram For Marine Alternator Mando Wire Of 0, best images Wiring Diagram For Marine Alternator Mando Wire Of 0 Added on. VARIOUS MARINE APPROVED ALTERNATOR DESIGNS. Brush Cover protection. In order for the alternator to be certified, it must pass the testing procedure, Marine SAE J, laid-out by the Society IGNITION +. LATE MANDO STYLE. Apr 20, 2019 - In Alternator Diagram Wiring, best images In Alternator Diagram Wiring Added on Wiring Diagram – floraoflangkawi.org

Mando alternator wiring diagram. June 9, 2013 - pin1 to the battery with a 3amp ... less then std alternator 45amp ... You didnt bother clicking the link i found for you then ? All of the above and the one is shown there with all the pin outs · i did, but i musta scrolled past the bit with the diagram on it! top work everyone ... Brushes inside the alternator cause some sparking when the alternator is charging. This is normal for any alternator. When the alternator is exposed to a flammable atmosphere, such as an enclosed engine compartment on an inboard gasoline application with a fuel leak, the sparking from the brushes in the alternator may cause an explosion. 1 - The terminal pin-out for a Mando (ignore the Black or Purple wire reference to the "EXC" terminal). 2 - A wiring diagram for a PCM engine showing the three wires connected to the alternator. The Black ground wire is shown in a confusing position on the alternator, in the sketch, but does indicate it connects to the engine block. wire if needed and other necessary wiring. Connect alternator to Balmar regulator wiring harness as indicated in wiring diagram included on Page The alternator’s positive and ground cables should be sized according to the chart on Page 3. Installation Information Page 2. ALTERNATOR T Mando 65 amp, serpentine belt application F 2 Mando 65 amp ...

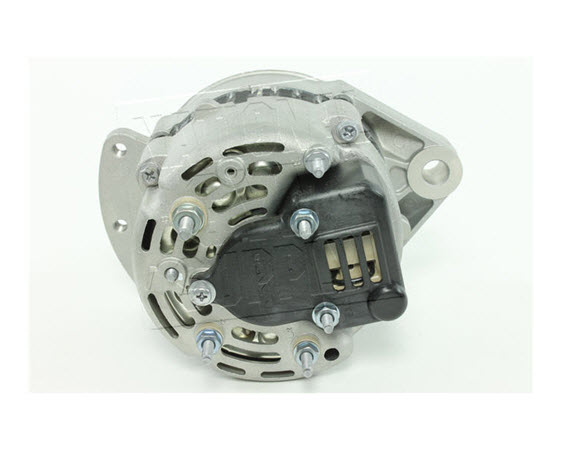

Lucas Marine Alternator Wiring Diagram. Yanmar marine alternator wiring diagram www lucaselektrik com help needed boat lucas 17acr alternators 2 pin full delco replacement 3 wire from to battery. Alternator Delco Replacement 3 Wire Mercruiser 61 Amp Mando Ph300 0022 119 95 Ebasicpower Com Marine Engine Parts Fishing Tackle Basic Power Industries. Valeo Alternator Wiring Diagram. Valeo alternator wiring diagram full 31 delco replacement 3 wire volvo penta fits most sel terminals cruisers 90a 12v 4g shanghai vehicle spares imp prestolite electric alternador para replacing tg23c018 connection onto the r32. Alternator Delco Replacement 3 Wire Mercruiser 61 Amp Mando Ph300 0022 119 95 ... Alternator, Mando, Our Part# LCA10, OEM# 0017-00009-0841 or 800-3122, Price: $160.00, Weight: 13LB, In Stock 19 Jul 2017 — Does anyone have a wiring diagram for a 55 amp Mando alternator w/internal regulator? Model no. is AC155603. I'm doing the engine wiring ...11 posts · Bob that's not the OEM Motorola alternator. I hope it's not the CD harness "upgrade"? ...

White wire says "to alternator regulator exciter". It looks like you are using the wiring diagram for a internal regulator alternator but using a. However, as per the Mando alternator wiring diagram, there is a wire on both the exciter terminal and the sensing terminal. After the engine. to the alternator. Exciter wire. Battery light. Key Switch. READ Gy6 Wiring Diagram 150Cc Database. Read electrical wiring diagrams from bad to positive and redraw the circuit being a straight range. All circuits are the same - voltage, ground, solitary component, and switches. Mando Marine Alternator Wiring Diagram Source: schematron.org. Mando Marine Alternator Wiring Diagram Source: cdn.boats.net. Is it possible that the alternator had a problem to begin with (it was a used alternator, pulled from a boat with a cracked engine block)? I cant find a diagram of a Mando alternator anywhere, so I'm really looking for confirmation that the wiring is correct, and if so, what else that could have been. Any help would be much appreciated. Thanks! This domain has expired and is now suspended. If you would like to restore it please contact the registrar used to register your domain. You can check the registrar used for your domain at whois.CO · Este dominio ha expirado y está ahora suspendido. Si usted es el titular del dominio y quisera ...

Leece Neville Alternator 24v 175a J 180 Insulated 8sc3157v Bermantec

Hardin Marine Alternator Mando. Alternator delco replacement 3 wire wiring offsonly com boating forum question boat talk dynamo generator mercruiser 12v connections 5 8l help serpentine find diagram for swap woes the my on a 7 l 95 7l purple mando 55 amp db electrical amn0011 hardin marine correct shamrock from to battery alternators wagner products 260 0l engine style volvo harness 1997 ...

Victronenergy Com Es

As per the original Universal wiring diagram, I do not see a wire connected to the exciter terminal on the alternator, but only a purple wire to the sensing terminal. However, as per the Mando alternator wiring diagram, there is a wire on both the exciter terminal and the sensing terminal.

3 Wire Alternator Wiring Diagram Lovely Wiring Diagram Denso Alternator Wiring Diagram Nippondenso Voltage Regul Alternator Electrical Diagram Denso Alternator

mercruiser 5 0 wiring harness diagram wiring diagram note. mando marine alternator wiring diagram wiring diagram. A set of wiring diagrams may be required by the electrical inspection authority to approve attachment of the address to the public electrical supply system.

Auto Alternator 12 V 100a Untuk Almera X Trail 2 2 23100bn300 23100bn305 231005m310 Lr1100724 Buy Auto Alternator 12 V 100a Untuk Almera X Trail 2 2 23100bn300 23100bn305 231005m310 Lr1100724 Alternator 12 V Auto Alternator Product

Run the green wire to the (D+) terminal on the new alternator. This provides the wiring to the indicator light, which is an essential sensing part of the alternator internal wiring. See the wiring diagram above ("Rough Schematic of Engine Wiring") for the alternator with an internal voltage ...

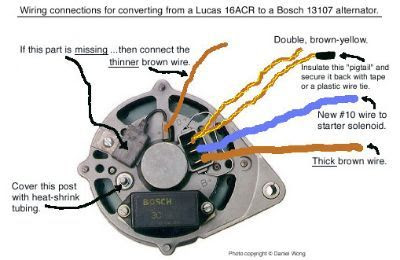

Reyhan Blog Bosch Alternator Wiring B D W

Read Or Download Diagram For For FREE Mando Alternator at PHIDIAGRAM.KARMA51.IT

Hardin Marine Alternator Mando

Read Or Download Marine Alternator For FREE Wiring Diagram at AVDIAGRAMS.OHIMABRASSERIE.IT

Hardin Marine Alternator Mando Ar 150

Understanding the Alternator • Four wires connect the alternator to the rest of the charging system. • B is the alternator output wire that supplies current to the battery. • IG is the ignition input that turns on the alternator/regulator assembly. • S is used by the regulator to monitor charging voltage at the battery.

Alternator Untuk Hyundai Kia Ta000a56901 Ta000a61201 Buy Alternator Untuk Hyundai Ta000a56901 Ta000a61201 Product On Alibaba Com

12 Apr 2016 — So, now I have a new Mando alternator that's supposed to be a direct replacement. Of course, they are not identical. No biggie ( or so I thought ...

Reyhan Blog Bosch Alternator Uae

mando alternator wiring diagram. See another Wiring · mando alternator wiring diagram. See another Schematic

3 Wire

The Mercruiser Mando alternator has 5 wires attached. Of the 5 wires, 2 are heaver gage and are 12v positive and ground. The 3 other wires are labeled "S", "L2" ...

Db Electrical Amn0011 Alternator For Mercruiser Omc Volvo Penta 3854182 3856600 3857561 3860171 Alternators Amazon Canada

From Datsun 1200 Club · There are several basic types of Nissan alternator, each with their own wiring system

There Are Only Three Wires Pelican Parts Forums

Mando Alternator Wiring Diagram Source: www.offshoreonly.com. Before reading the schematic, get familiar and understand all of the symbols. Read the schematic like a roadmap. I print the schematic plus highlight the routine I’m diagnosing to make sure Im staying on right path. Mando Alternator Wiring Diagram Source: static-cdn.imageservice.cloud.

Mando Alternator Brush Replacement Youtube

wire if needed and other necessary wiring. Connect alternator to Balmar regulator wiring harness as indicated in wiring diagram included on Page 12. The alternator's positive and ground cables should be sized according to the chart on Page 3. Installation Information Page 2

95 Mercruiser 5 7l Alternator Purple Yellow Wire Boating Forum Iboats Boating Forums

Thanks Wingnut. The wiring (and posts) config on the Quicksilver 55 Amp Alternator 817119A4 - Mando - V-Belt... appears to be identical to the Sierra 18-5966 (which is what I bought). The local West Marine store has the Sierra 18-5966 also and the guy there said it is a replacement for the 817119A4 - Mando V-Belt.

Victronenergy Com Es

Mercruiser 260 Alternator Wiring Diagram. Wiring diagram for a mercruiser 260 3 0l engine source harness circuit breaker and alternator question boat talk 5 7 starter model 228 1997 1981 mie gm 350 v 8 1986 alpha bravo 1987. Wiring Harness Circuit Breaker And Starter Solenoid 1981 Mercruiser 260 260801 Crowley Marine.

Sierra Marine 18 5957 Alternator 3 Wire

Mando Alternator Wiring Diagram from www.studebaker-info.org To properly read a electrical wiring diagram, one has to know how the particular components in the method operate. For instance , if a module is usually powered up also it sends out a new signal of half the voltage plus the technician does not know this, he'd think he provides a ...

Amazon Com New Db Electrical Amn0002 Alternator Compatible With Replacement For Mercruiser Model 198 Mie1997 Model 228 1997 1981 Model 228 Mie 1997 1980 Model 255 Mie 1975 1980 3186m C Hq 8mr2023fa 7466n Automotive

We’ll start our tour of the alternator where it all starts in the alternator itself – at the alternator rotor. The rotor consists of a coil of wire wrapped around an iron core. Current through the wire coil – called “field” current – produces a magnetic field around the core.

Billavista Com Alternator Bible Tech Article By Billavista

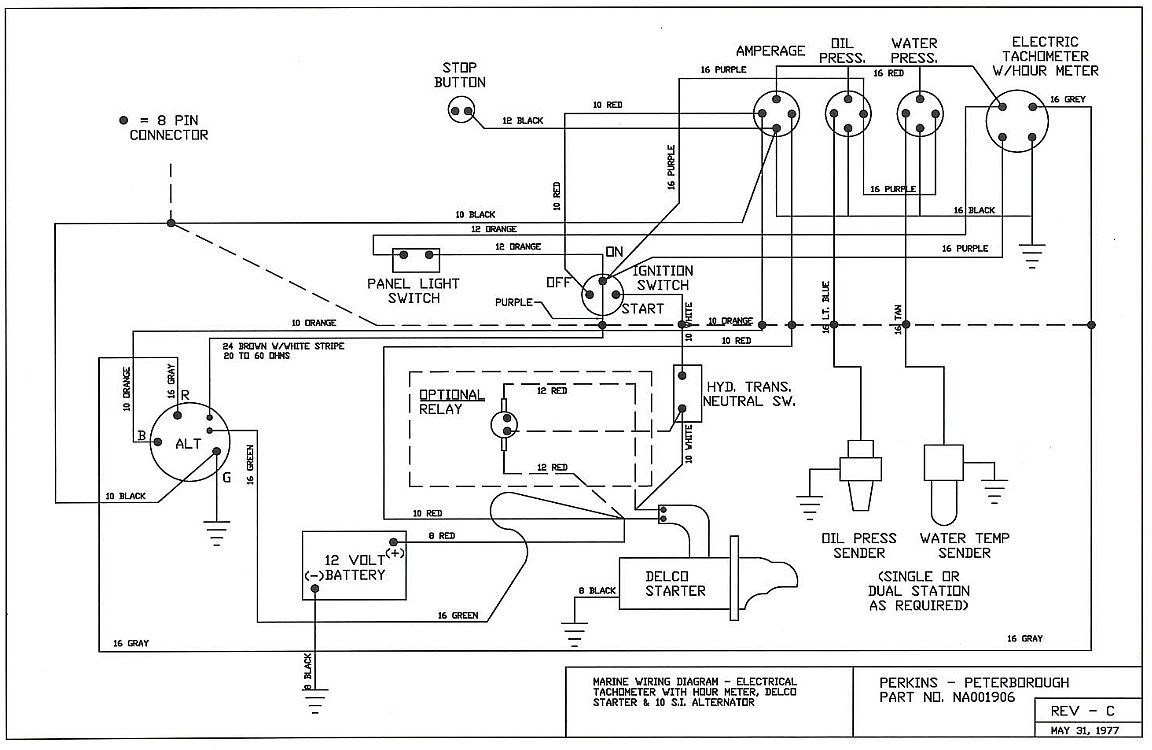

How do I wire my marine alternator? Many alternators require ignition voltage to initiate charging. You must verify that all required connections are connected to the proper terminal and have the correct voltage in order for the alternator to operate properly. Below you will find the most common alternator circuits used on marine applications.

1 Wire Alternator Wiring Diagram Wiring Forums In 2021 8n Ford Tractor Alternator Ford Tractors

Alternator for Mercruiser Marine High Output 220 Amp C155603; HO-Marine220-SE-1G. Item #: HO-MARINE220-SE-1G. Was: Now: $337.14. Fitments & Details.

Upgrading The Alternator

Mando Alternator Wiring Diagram. Alternator delco replacement 3 wire mercruiser 61 amp mando ph300 0022 119 95 ebasicpower com marine engine parts fishing tackle basic power industries wiring offsonly customer services bulletin diagram 310 voltage regulator location sailboat owners forums trying to find for not sure what wires go terminals 92 ...

Alternator Hookup Connections 5 8l Help

The wiring (for maximal 5 metres) should be (150/3) 50mm². Be sure not to connect the Balmar alternator on the ground at any part of the system because it will be not ground isolated anymore! Difference in wiring compared to standard alternators. The major difference between wiring a series 6 Balmar alternators and a regular alternator which is

Db Electrical Amn0002 New Mercruiser Omc Volvo Marine Mando Alternator Mercruiser Ski Engine 454 502 5 7l 5 0lx Mercruiser 600sc 800sc 817119 2 817119a 20054 Alt53 1926 60050 400 46002 A000b0331 Buy Online At Best Price In Uae

To Battery. Alternator. Basic wiring diagram to , replace the alternator and the exciter wire pigtail. However, as per the Mando alternator wiring diagram, there is a wire on both the exciter terminal and the sensing terminal. After the engine.May 01, · With the engine running at idle, my alternator is putting out 14 or so volts.

Charging Starting Systems Automotive Fusionmagazine Org New Alternator Sae J1171 For Mando Volvo Penta Marine 3860082 3860798 Ac165622

Suzuki 44 sj413 alternator and charging system circuit. A wiring diagram is a simplified conventional photographic depiction of an electric...

Victronenergy Com Es

Mercruiser 4.3 Alternator Wiring Diagram - wiring diagram is a simplified good enough pictorial representation of an electrical circuit. It shows the components of the circuit as simplified shapes, and the capability and signal friends amid the devices. A wiring diagram usually gives suggestion approximately the relative point of view and ...

310 Voltage Regulator Location Sailboat Owners Forums

404 Not Found · nginx

Support Corehandf Com

Your number one resource for OEM and aftermarket replacement parts, accessories and electronics repairs for commercial fitness equipment.

Trying To Find Wiring Diagram For Alternator Not Sure What Wires Go To What Terminals

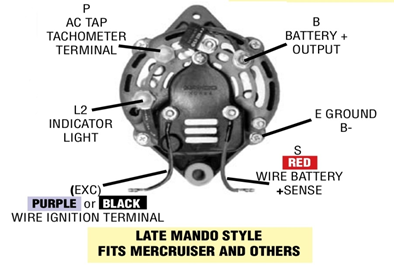

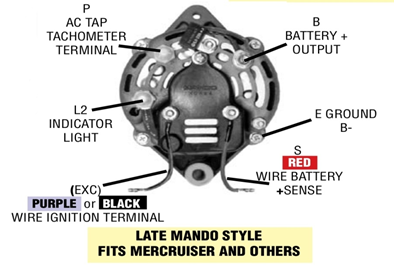

1 - The terminal pin-out for a Mando (ignore the Black or Purple wire reference to the "EXC" terminal). 2 - A wiring diagram for a PCM engine showing the three wires connected to the alternator. The Black ground wire is shown in a confusing position on the alternator, in the sketch, but does indicate it connects to the engine block.

Wiring Diagram 1982 Ski Nautique 351 Ford Correctcraftfan Com Forums

August 24, 2011 - Re: 1996 7.4 Mando Alternator with 5 wires Excuse me if this hits twice. Thanks Don S, I am viewing the picture, and I see a line at the 10 o'clock position but no description. My wires are orange, black, purple, red/purple, and the black with a "push on" cap.
